Rapid Fire Extinguishing Without Set-Up Time!

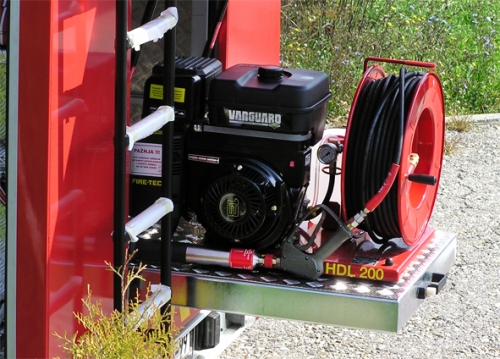

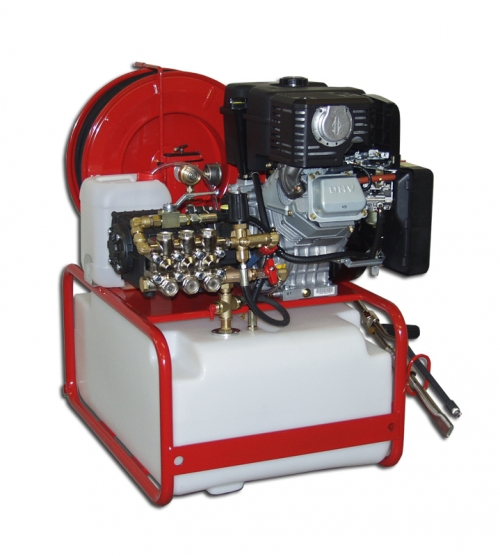

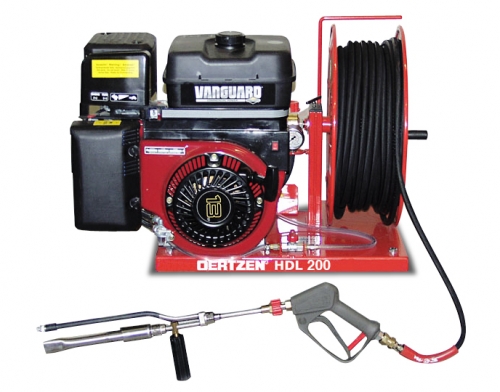

OERTZEN Universal HP Fire Extinguishing Unit with tank - installation version
extinguishing pressure 200 bar
water flow rate 22 l/min
tank volume 100 l
DUPLEX rapid attack attachment for spray and low expansion foam
60 m high pressure extinguishing hose
solid, surrounding steel frame (powder coated) with 4 rubber/metal bumpers, 1 cyl./ 4 stroke petrol engine (heavy duty) 9.6 kW/13 hp, with oil pressure control and recoil rope starter, petrol tank 5 l (canister), reduction gearbox (pump rpm 1450 1/min), 3 cyl. inline plunger pump 22 l/min (splash oil lubricated) forged crankshaft, wear-free ceramic plungers, forged brass cylinder head, stainless steel valves, foam agent injection (3 %) with stop valve, thermo valve (prevents overheating), pressure relief for pump by hp unloader valve with extinguishing pistol closed
Standard equipment: DUPLEX rapid attack attachment for spray and low expansion foam, 60 m JET hp extinguishing hose (300 bar) on hose reel with swivel joint crank and brake, hose swivel, lockable extinguishing pistol
| Technical characteristics | |
|---|---|
Dimensions (frame) | 760 x 670 x 850 mm |
Weight | 99 kg (with tank) |
Engine/motor | 4-stroke petrol engine, 1 cyl. 9.6 kW |
Start | recoil rope starter |
HP plunger pump | 3 cyl. 22 l/min |
Extinguishing pressure max. | 200 bar |
HP hose | 60 m (300 bar) |
Water tank | 100 l |
Foam agent injection | standard |
Extinguishing pistol | DUPLEX Attachment |
